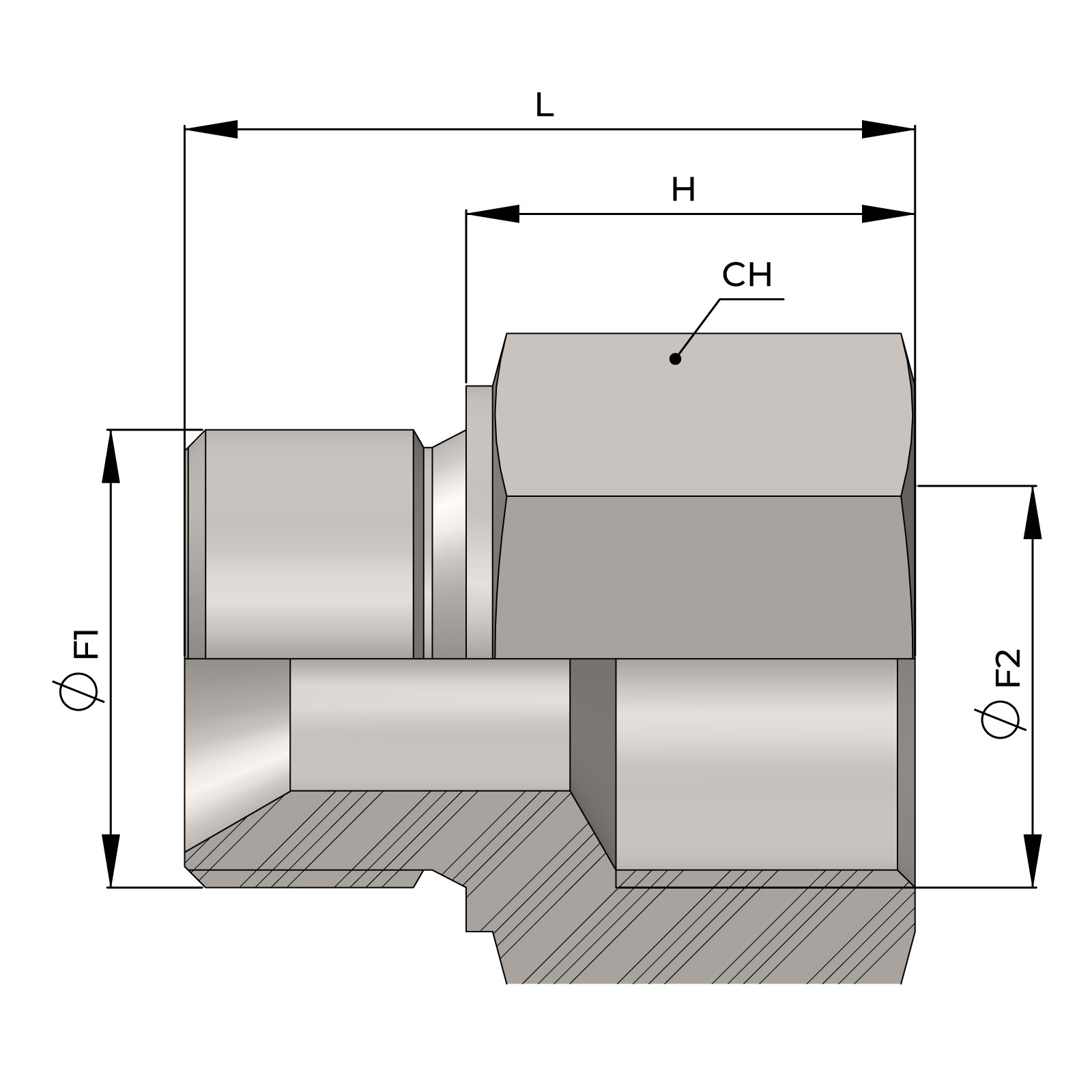

| Part Number | Thread | Thread | L | H | CH |
|---|---|---|---|---|---|
| F1 | F2 | mm | mm | mm | |
| PGG018015316 | 1/8"-28 | 1/8"-28 | 25 | 15 | 14 |
| PGG018020316 | 1/8"-28 | 1/8"-28 | 30 | 20 | 14 |
| PGG018030316 | 1/8"-28 | 1/8"-28 | 40 | 30 | 14 |
| PGG014020316 | 1/4"-19 | 1/4"-19 | 32 | 20 | 19 |
| PGG014035316 | 1/4"-19 | 1/4"-19 | 47 | 35 | 19 |
| PGG014050316 | 1/4"-19 | 1/4"-19 | 62 | 50 | 19 |
| PGG038020316 | 3/8"-19 | 3/8"-19 | 32 | 20 | 22 |
| PGG038035316 | 3/8"-19 | 3/8"-19 | 47 | 35 | 22 |
| PGG038050316 | 3/8"-19 | 3/8"-19 | 63 | 50 | 22 |
| PGG012025316 | 1/2"-14 | 1/2"-14 | 40 | 25 | 27 |
| PGG012035316 | 1/2"-14 | 1/2"-14 | 50 | 35 | 27 |
| PGG012050316 | 1/2"-14 | 1/2"-14 | 65 | 50 | 27 |
| PGG034030316 | 3/4"-14 | 3/4"-14 | 46 | 30 | 32 |
| PGG034045316 | 3/4"-14 | 3/4"-14 | 61 | 45 | 32 |
| PGG034060316 | 3/4"-14 | 3/4"-14 | 76 | 60 | 32 |
| PGG001030316 | 1"-11 | 1"-11 | 50 | 30 | 41 |
| PGG001050316 | 1"-11 | 1"-11 | 70 | 50 | 41 |
| PGG001070316 | 1"-11 | 1"-11 | 90 | 70 | 41 |
| PGG114030316 | 1.1/4"-11 | 1.1/4"-11 | 51 | 30 | 50 |
| PGG114050316 | 1.1/4"-11 | 1.1/4"-11 | 71 | 50 | 50 |
| PGG114070316 | 1.1/4"-11 | 1.1/4"-11 | 91 | 70 | 50 |
| PGG112035316 | 1.1/2"-11 | 1.1/2"-11 | 57 | 35 | 55 |
| PGG112050316 | 1.1/2"-11 | 1.1/2"-11 | 72 | 50 | 55 |
| PGG112070316 | 1.1/2"-11 | 1.1/2"-11 | 92 | 70 | 55 |
| PGG002040316 | 2"-11 | 2"-11 | 67 | 40 | 70 |
| PGG002060316 | 2"-11 | 2"-11 | 87 | 60 | 70 |
| PGG002070316 | 2"-11 | 2"-11 | 97 | 70 | 70 |
Produciamo raccordi per l’oleodinamica in acciaio inox. Oltre al nostro catalogo che include più di 9000 articoli, produciamo particolari su richiesta del cliente.
Operiamo in Italia e in tutta Europa.
