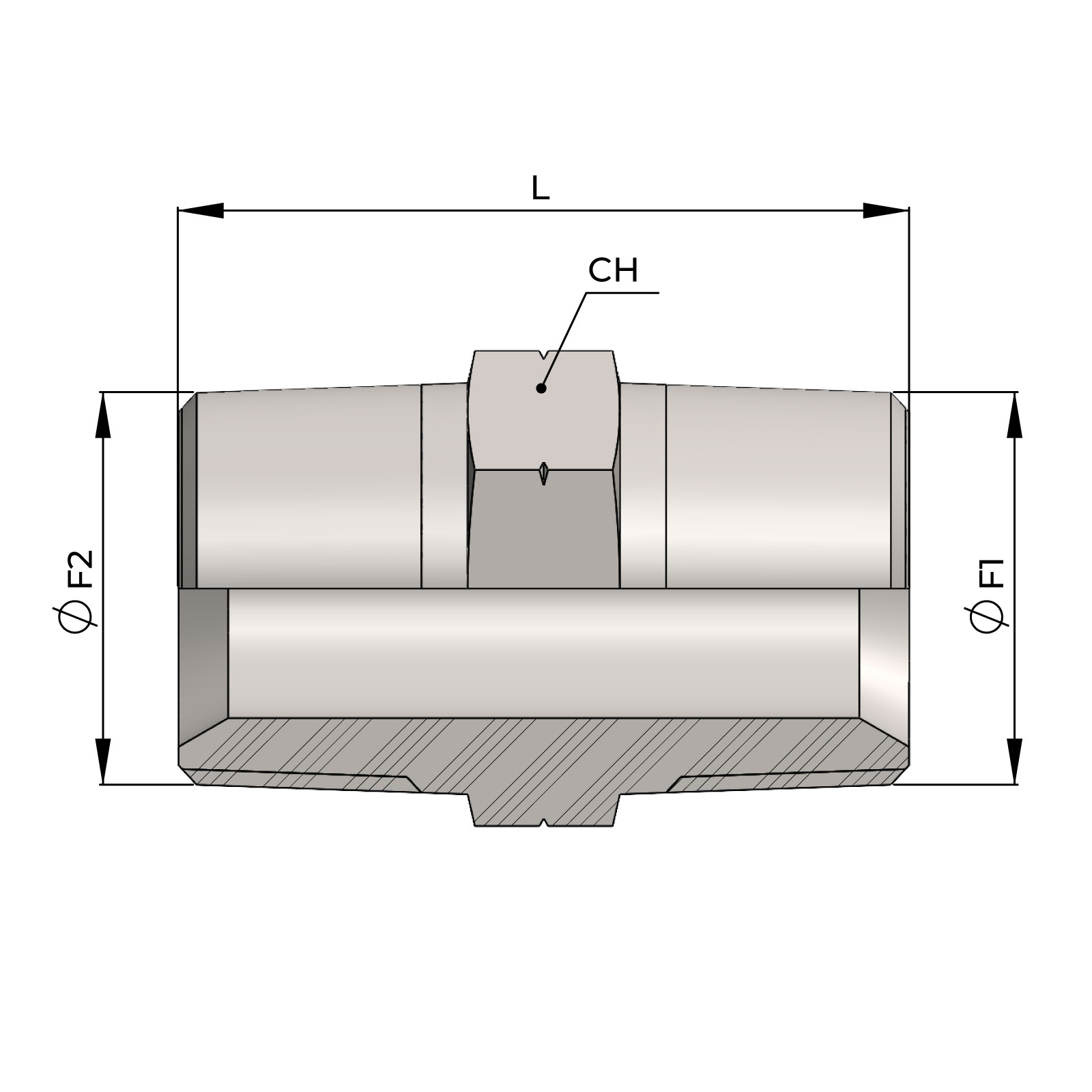

| Part Number | Thread | Thread | L | CH |
|---|---|---|---|---|
| F1 | F2 | mm | mm | |
| NNN018018316 | NPT 1/8"-27 | NPT 1/8"-27 | 27 | 12 |
| NNN014014316 | NPT 1/4"-18 | NPT 1/4"-18 | 36,5 | 14 |
| NNN038038316 | NPT 3/8"-18 | NPT 3/8"-18 | 36,5 | 19 |
| NNN012012316 | NPT 1/2"-14 | NPT 1/2"-14 | 48,4 | 22 |
| NNN034034316 | NPT 3/4"-14 | NPT 3/4"-14 | 50 | 27 |
| NNN001001316 | NPT 1"-11 | NPT 1"-11 | 59 | 36 |
| NNN114114316 | NPT 1.1/4"-11 1/2 | NPT 1.1/4"-11 1/2 | 63 | 46 |
| NNN112112316 | NPT 1.1/2"-11 1/2 | NPT 1.1/2"-11 1/2 | 65 | 50 |
| NNN002002316 | NPT 2"-11 1/2 | NPT 2"-11 1/2 | 68 | 65 |
