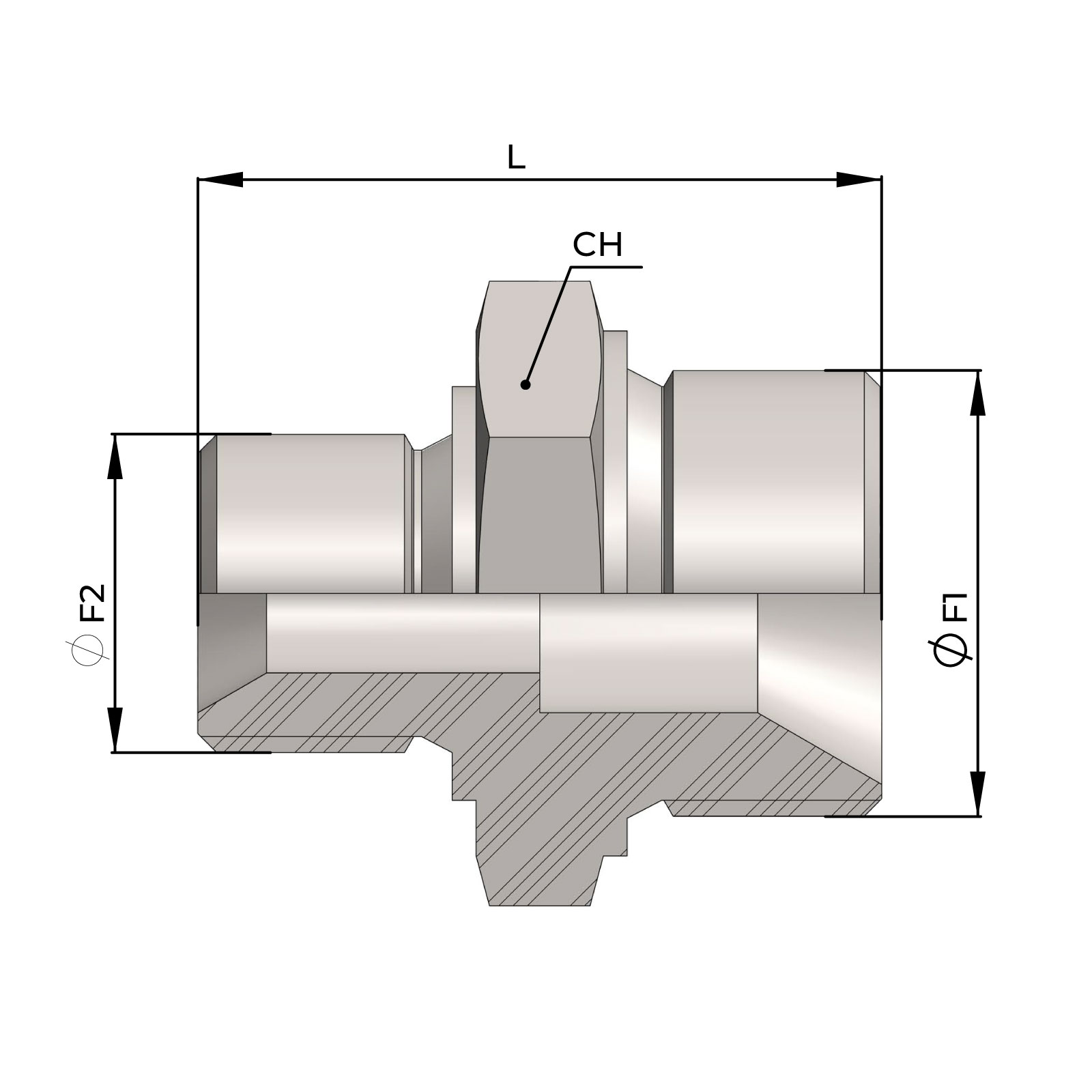

| Part Number | Thread | Thread | L | CH |
|---|---|---|---|---|
| F1 | F2 | mm | mm | |
| NIP014018316 | BSP 1/4"-19 | BSP 1/8"-28 | 31 | 19 |
| NIP038018316 | BSP 3/8"-19 | BSP 1/8"-28 | 31 | 22 |
| NIP038014316 | BSP 3/8"-19 | BSP 1/4"-19 | 33 | 22 |
| NIP012014316 | BSP 1/2"-14 | BSP 1/4"-19 | 37 | 27 |
| NIP012038316 | BSP 1/2"-14 | BSP 3/8"-19 | 38 | 27 |
| NIP058012316 | BSP 5/8"-14 | BSP 1/2"-14 | 40 | 30 |
| NIP034014316 | BSP 3/4"-14 | BSP 1/4"-19 | 38 | 32 |
| NIP034038316 | BSP 3/4"-14 | BSP 3/8"-19 | 38 | 32 |
| NIP034012316 | BSP 3/4"-14 | BSP 1/2"-14 | 43 | 32 |
| NIP034058316 | BSP 3/4"-14 | BSP 5/8"-14 | 43 | 32 |
| NIP001012316 | BSP 1"-11 | BSP 1/2"-14 | 47 | 41 |
| NIP001034316 | BSP 1"-11 | BSP 3/4"-14 | 49 | 41 |
| NIP114034316 | BSP 1.1/4"-11 | BSP 3/4"-14 | 53 | 50 |
| NIP114001316 | BSP 1.1/4"-11 | BSP 1"-11 | 56 | 50 |
| NIP112034316 | BSP 1.1/2"-11 | BSP 3/4"-14 | 55 | 55 |
| NIP112001316 | BSP 1.1/2"-11 | BSP 1"-11 | 56 | 55 |
| NIP112114316 | BSP 1.1/2"-11 | BSP 1.1/4"-11 | 59 | 55 |
| NIP002001316 | BSP 2"-11 | BSP 1"-11 | 64 | 70 |
| NIP002114316 | BSP 2”-11 | BSP 1:1/4”-11 | 66 | 70 |
| NIP002112316 | BSP 2”-11 | BSP 1.1/2"-11 | 68 | 70 |
| NIP212002316 | BSP 2.1/2”-11 | BSP 2” | 74 | 85 |
| NIP003212316 | BSP 3” | BSP 2.1/2”-11 | 78 | 100 |
