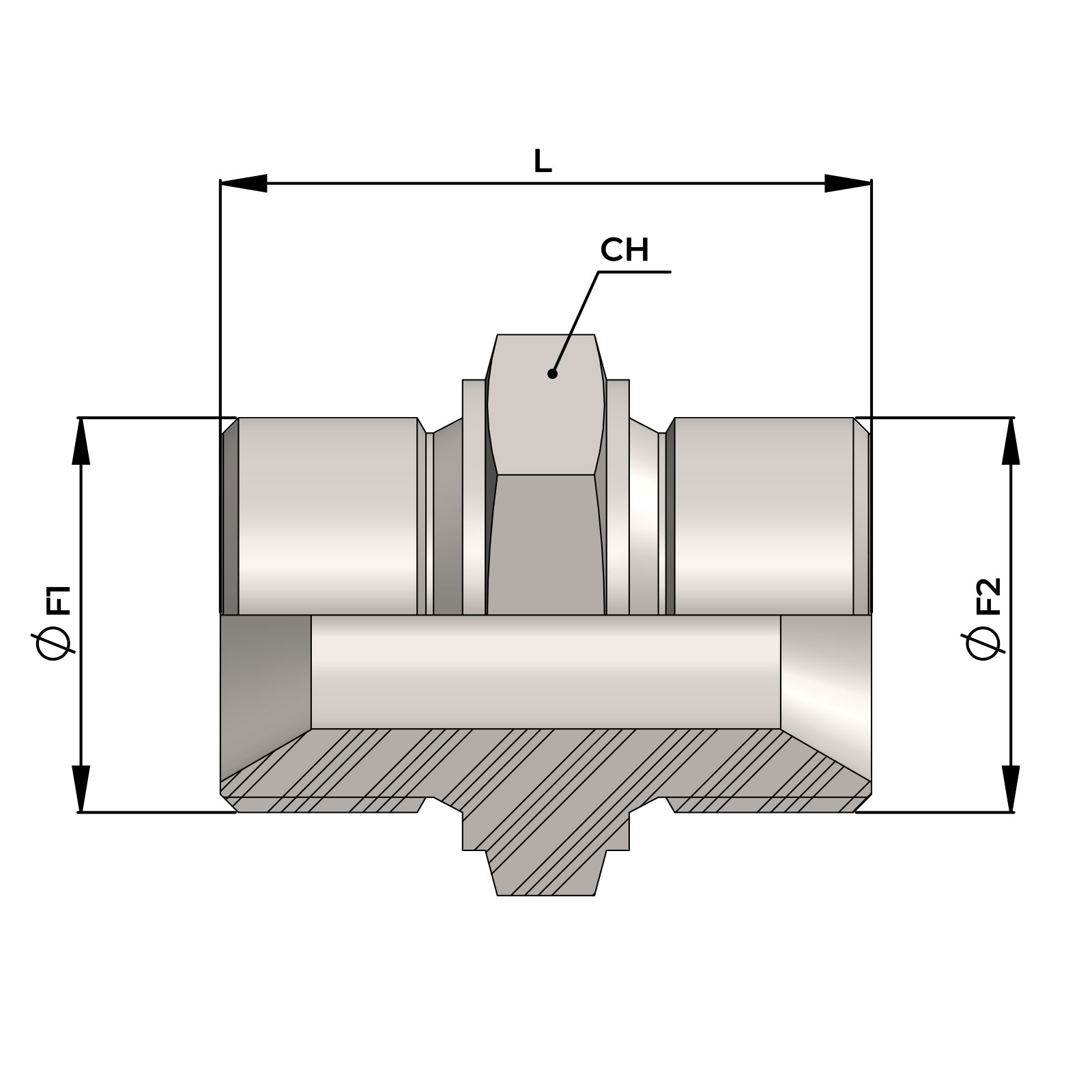

| Part Number | Thread | Thread | L | CH |
|---|---|---|---|---|
| F1 | F2 | mm | mm | |
| NIP018018316 | BSP 1/8"-28 | BSP 1/8"-28 | 27 | 14 |
| NIP014014316 | BSP 1/4"-19 | BSP 1/4"-19 | 32 | 19 |
| NIP038038316 | BSP 3/8"-19 | BSP 3/8"-19 | 33 | 22 |
| NIP012012316 | BSP 1/2"-14 | BSP 1/2"-14 | 41 | 27 |
| NIP058058316 | BSP 5/8"-14 | BSP 5/8"-14 | 42 | 30 |
| NIP034034316 | BSP 3/4"-14 | BSP 3/4"-14 | 43 | 32 |
| NIP001001316 | BSP 1"-11 | BSP 1"-11 | 53 | 41 |
| NIP114114316 | BSP 1.1/4"-11 | BSP 1.1/4"-11 | 59 | 50 |
| NIP112112316 | BSP 1.1/2"-11 | BSP 1.1/2"-11 | 60 | 55 |
| NIP002002316 | BSP 2"-11 | BSP 2"-11 | 70 | 70 |
| NIP212212316 | BSP 2.1/2"-11 | BSP 2.1/2"-11 | 75 | 85 |
| NIP003003316 | BSP 3"-11 | BSP 3"-11 | 80 | 100 |
Produciamo raccordi per l’oleodinamica in acciaio inox. Oltre al nostro catalogo che include più di 9000 articoli, produciamo particolari su richiesta del cliente.
Operiamo in Italia e in tutta Europa.
