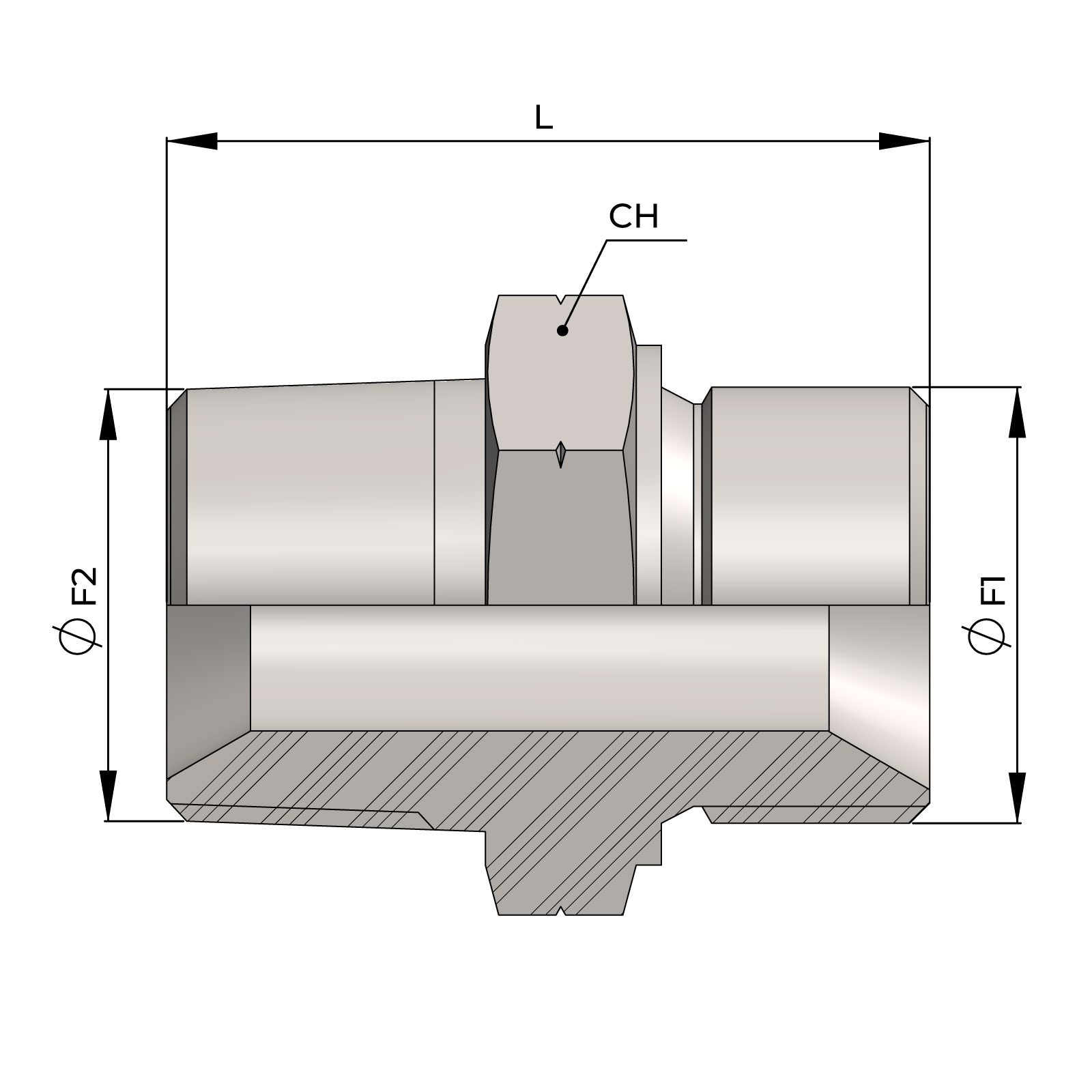

| Part Number | Thread | Thread | L | CH |
|---|---|---|---|---|
| F1 | F2 | mm | mm | |
| NGN018018316 | BSP 1/8"-28 | NPT 1/8"-27 | 27 | 14 |
| NGN014014316 | BSP 1/4"-19 | NPT 1/4"-18 | 33,2 | 19 |
| NGN038038316 | BSP 3/8"-19 | NPT 3/8"-18 | 34,7 | 22 |
| NGN012012316 | BSP 1/2"-14 | NPT 1/2"-14 | 44 | 27 |
| NGN034034316 | BSP 3/4"-14 | NPT 3/4"-14 | 44,5 | 32 |
| NGN001001316 | BSP 1"-11 | NPT 1"-11 1/2 | 56,5 | 41 |
| NGN114114316 | BSP 1.1/4"-11 | NPT 1.1/4"-11 1/2 | 59 | 50 |
| NGN112112316 | BSP 1.1/2"-11 | NPT 1.1/2"-11 1/2 | 63,4 | 55 |
| NGN002002316 | BSP 2"-11 | NPT 2"-11 1/2 | 71 | 70 |
| NGN212212316 | BSP 2.1/2"-11 | NPT 2.1/2"-11 1/2 | 86 | 85 |
